The VLX 150 Heavy-Duty Sliding Door is a large-span aluminum slider built for homeowners in Woodland Hills who want a wide, uninterrupted view without compromising structural strength. With a maximum span of up to 24 feet, this door replaces an entire wall of windows or opens a living room directly onto a patio, deck, or backyard. Hale Windows Woodland Hills is an authorized ViewLux installation partner, which means we sell, install, and warranty this product with factory-backed support right here in Woodland Hills, CA. Call (831) 618-2053 to schedule a free on-site measurement and get a written quote.

Call (831) 618-2053

Product Overview – VLX 150 Heavy-Duty Sliding Door

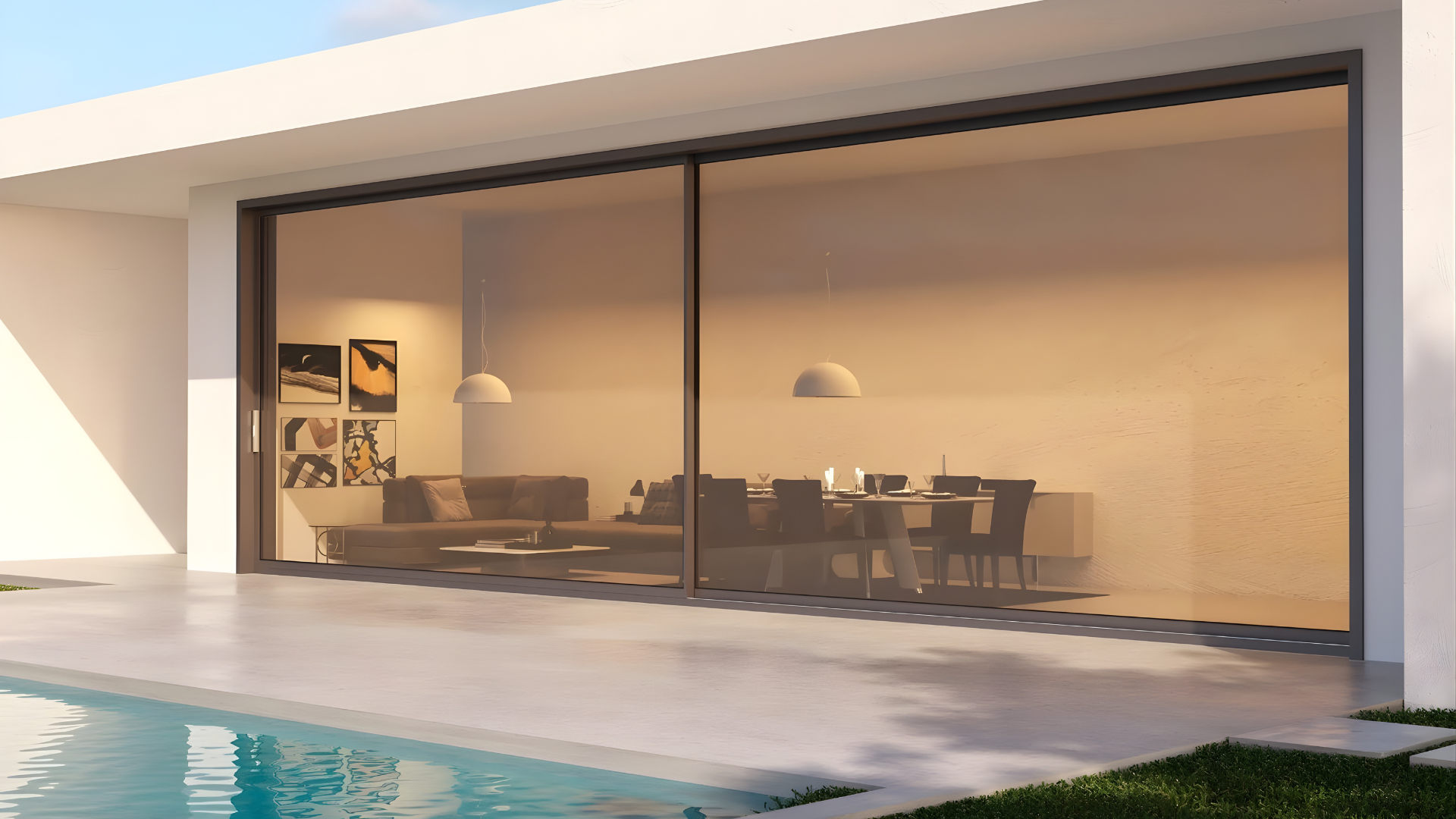

The VLX 150 is designed around a simple idea: bigger openings, fewer compromises. Unlike standard sliders that max out around 8 or 10 feet, this series uses a beefed-up aluminum extrusion profile that carries glass panels across spans up to 24 feet wide. That means a single opening can connect a Woodland Hills family room to a covered patio without a center post breaking the sightline.

The series is a strength-focused, large-span aluminum slider. What sets it apart from entry-level aluminum doors is the hardware package. The rollers and track assemblies are stainless steel, not plated zinc or plastic, so the panels glide cleanly even when each one weighs several hundred pounds. Multi-track configurations are available in 2-Track, 3-Track, and 4-Track layouts, which gives architects and contractors flexibility when stacking doors to one side or splitting panels in both directions.

In Woodland Hills, we see this product specified most often on ranch-style remodels and hillside homes where the view is the asset. The VLX 150 lets that view work for the house instead of framing it in small pieces. For homeowners who want a modern, minimal frame with serious load-bearing capability, this is the door we recommend first.

Technical Specifications

• Wall thickness: 0.118 inches of extruded aluminum, which resists racking and deflection on tall or wide openings.
• Profile width: 2.95 inches, slim enough for a clean sightline but wide enough to house the reinforced track and roller system.
• Maximum span: Up to 24 feet wide depending on panel count and site wind-load requirements.

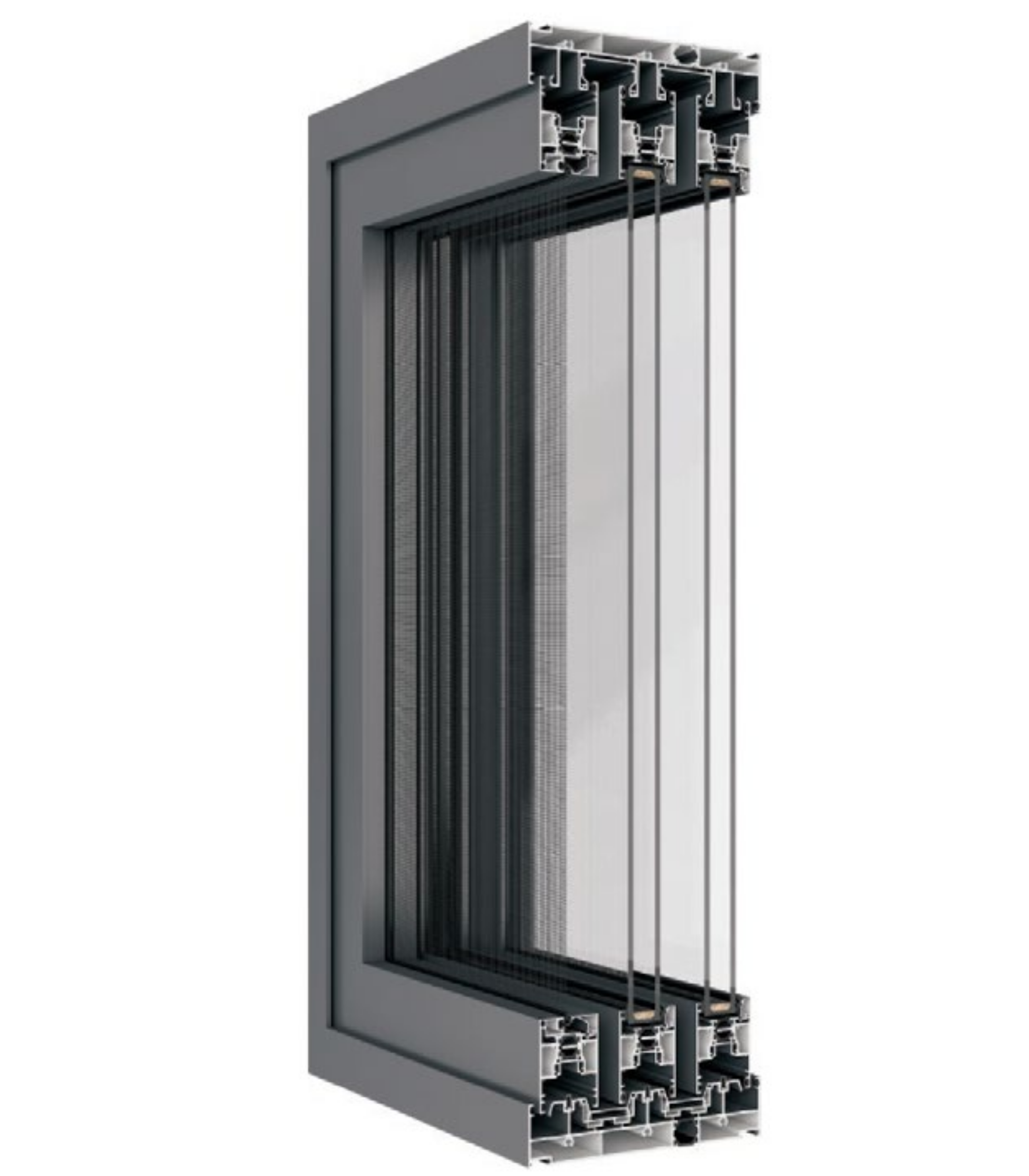

• Track configurations: 2-Track (fixed + sliding or two sliding), 3-Track (three movable panels), 4-Track (four panels for maximum opening).
• Glass options: Clear, Low-E, Tempered, Laminated, Gray Tint, Black Tint.
• Color and finish options: Premium Black, Pure White, Anodized Silver, Bronze, Champagne, Teak Wood.
• Screen options: Retractable Screen, Sliding Screen.
• Performance standards: NFRC-rated thermal performance with thermal break technology, AAMA 2400/2410 installation standard compliance, AAMA 812 low-expansion foam sealant on all perimeter joints, impact-resistant laminated glass available, wind-load rated for local climate requirements.

Performance Features

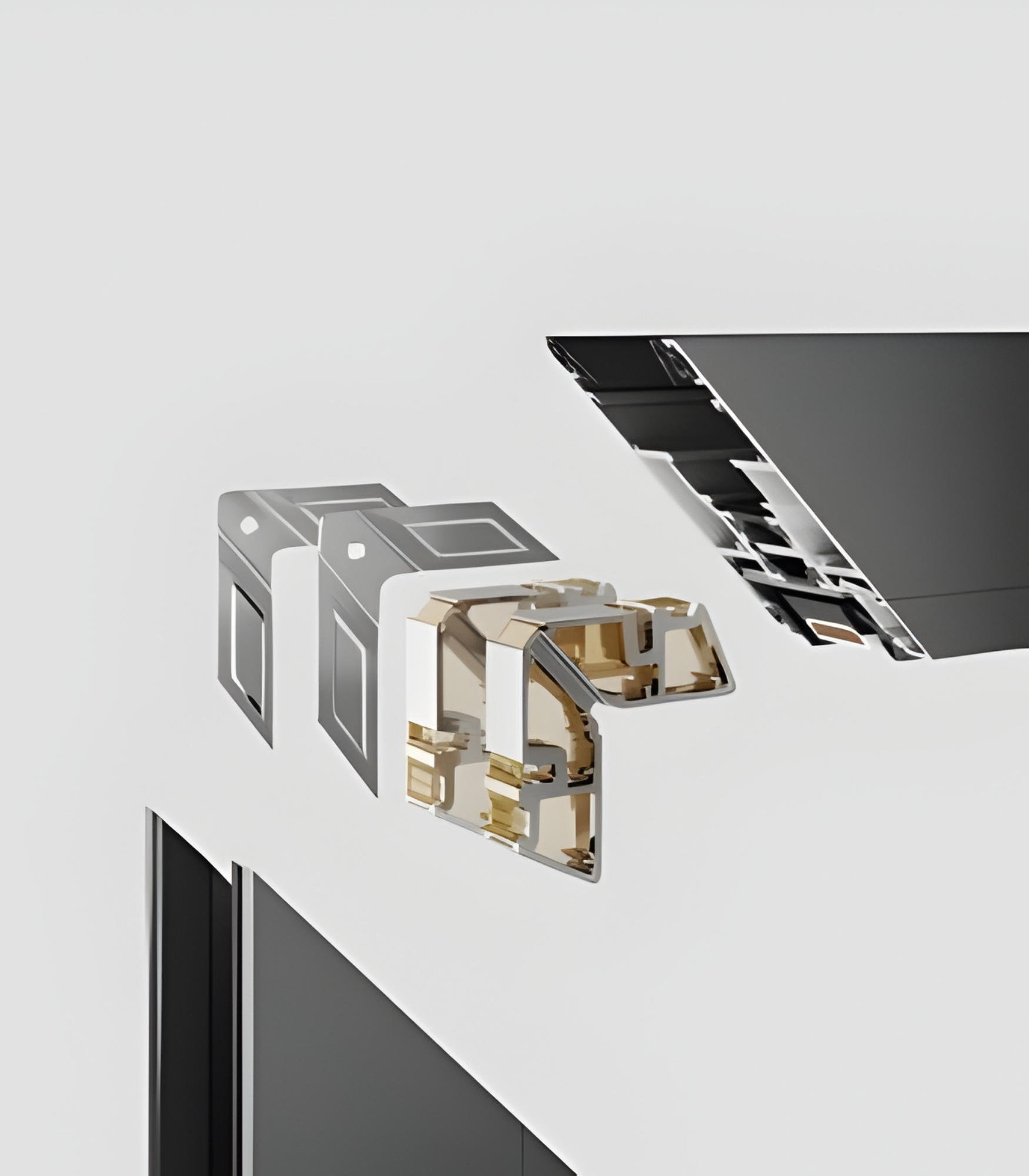

Thermal Efficiency – The VLX 150 uses a polyamide thermal break between the interior and exterior aluminum faces. That break stops conductive heat transfer through the frame, which is the weak point on any metal door. NFRC-rated energy performance means the U-factor and solar heat gain numbers are independently tested, not manufacturer estimates. For a Woodland Hills home facing west or south, this is the difference between a door that fights your air conditioner and one that works with it.

Acoustic Performance – Laminated glass is available on the VLX 150, and it is the single best upgrade for noise control. The PVB interlayer between glass panes damps sound transmission. If the home sits near Ventura Boulevard, the 101 corridor, or any of the busier canyon roads in Woodland Hills, we recommend laminated glass on the street-facing panels. Tests consistently show a measurable drop in db levels compared to clear tempered glass.

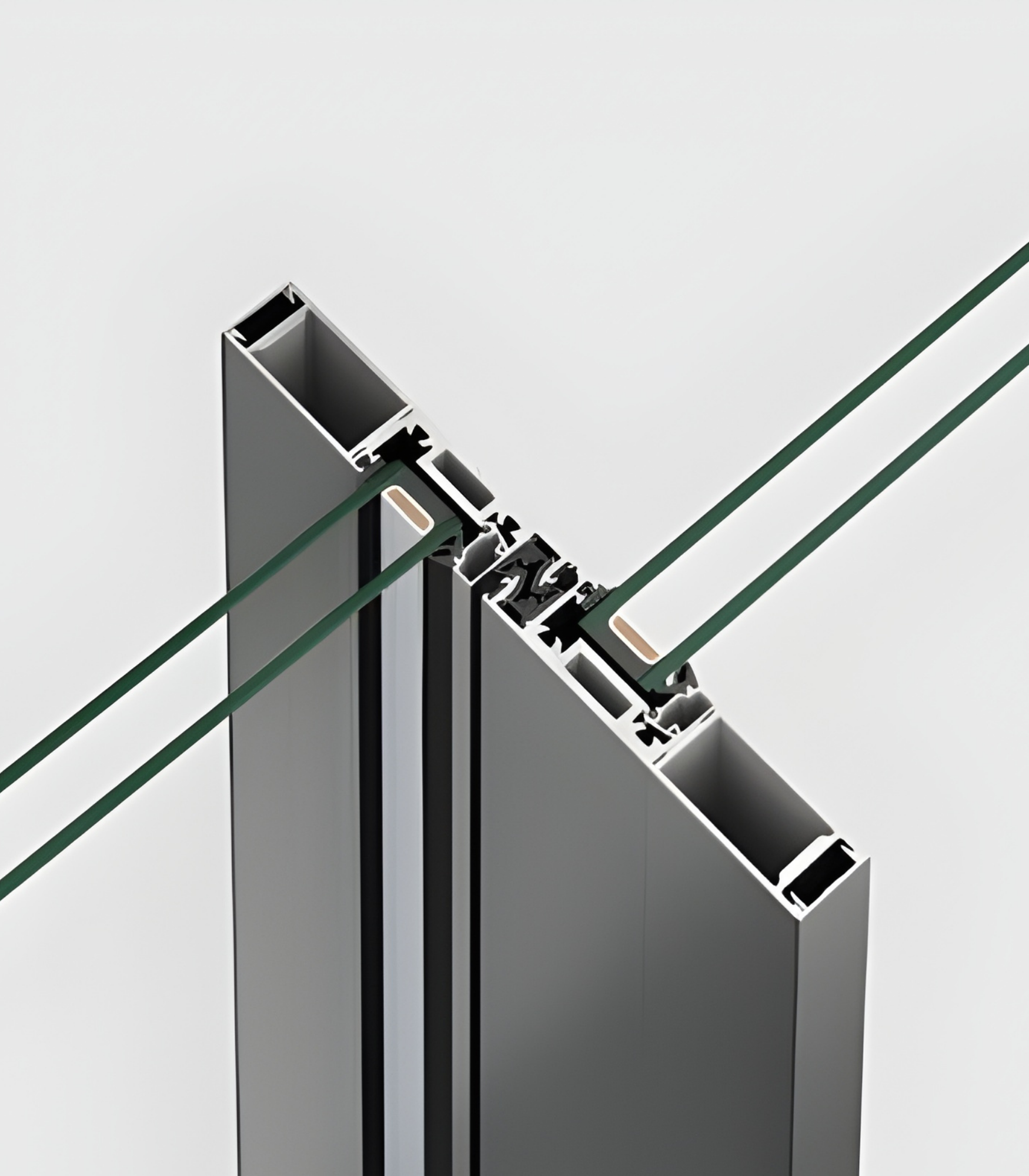

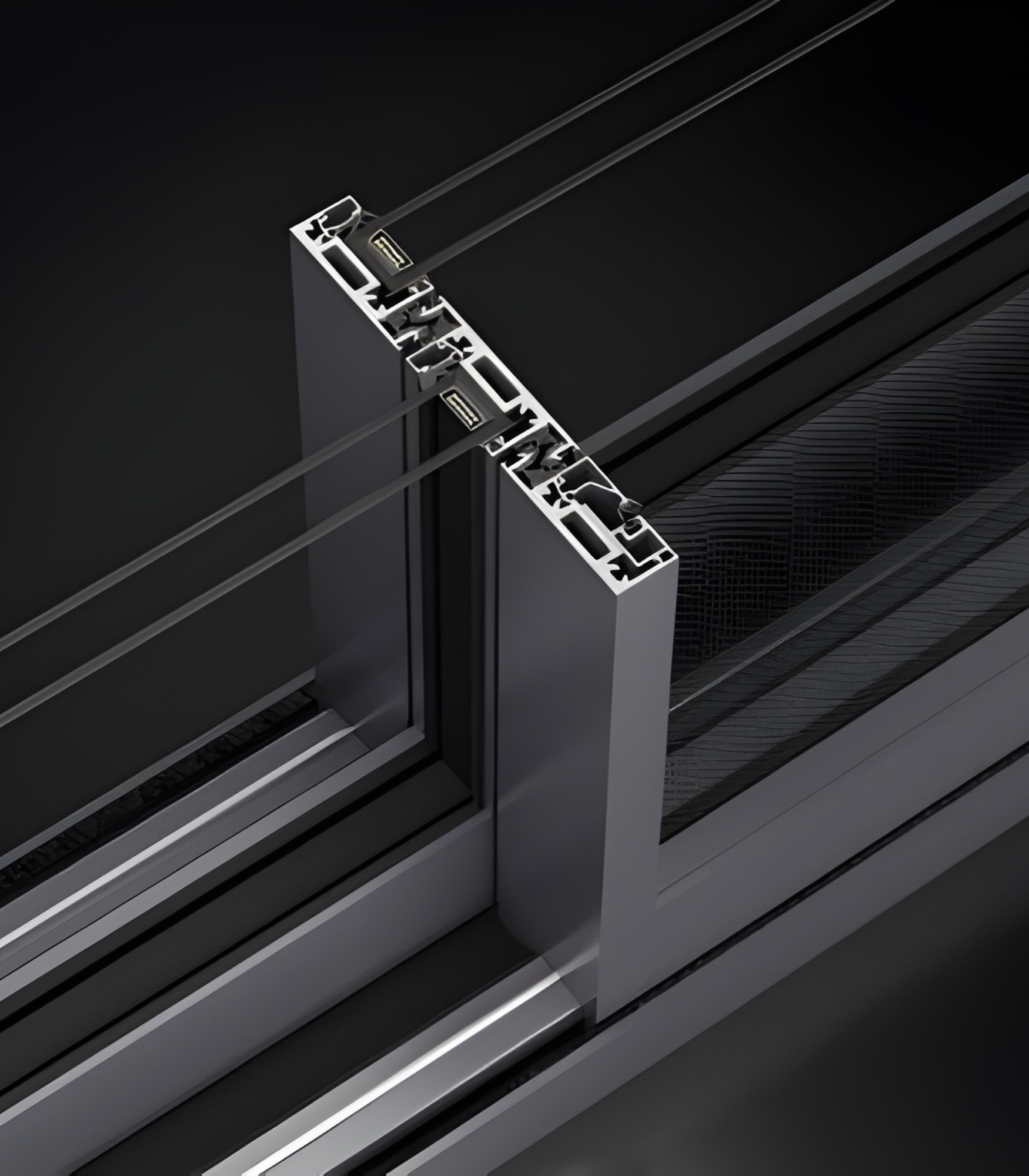

Airtightness & Weather Seal – The track system uses a continuous compression seal at the meeting stiles and a full-perimeter gasket system. Air infiltration on the VLX 150 is rated to perform well below the threshold most standard aluminum sliders fail. For a Woodland Hills home, that means less dust intrusion during Santa Ana wind events and fewer drafts in winter months.

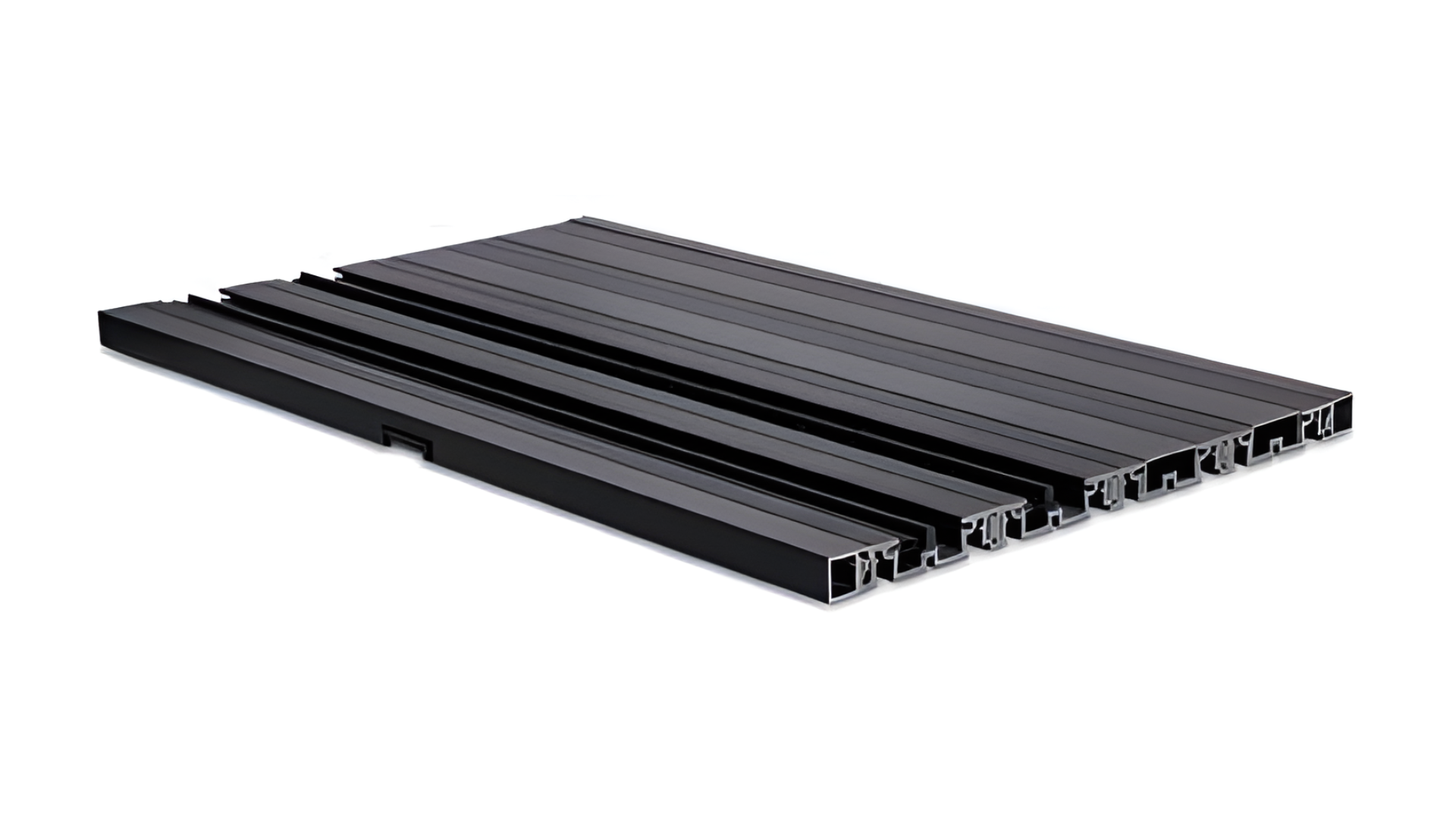

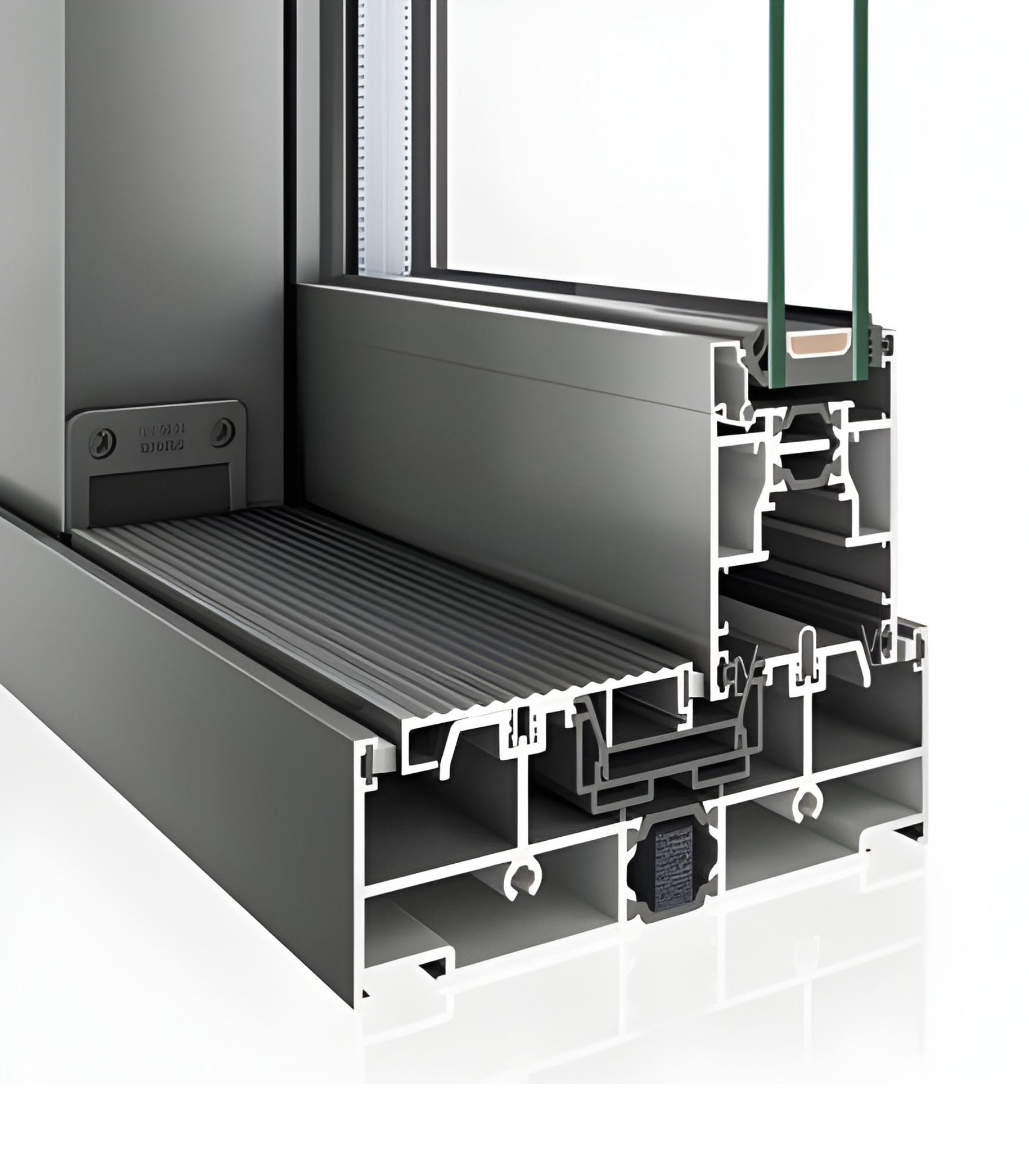

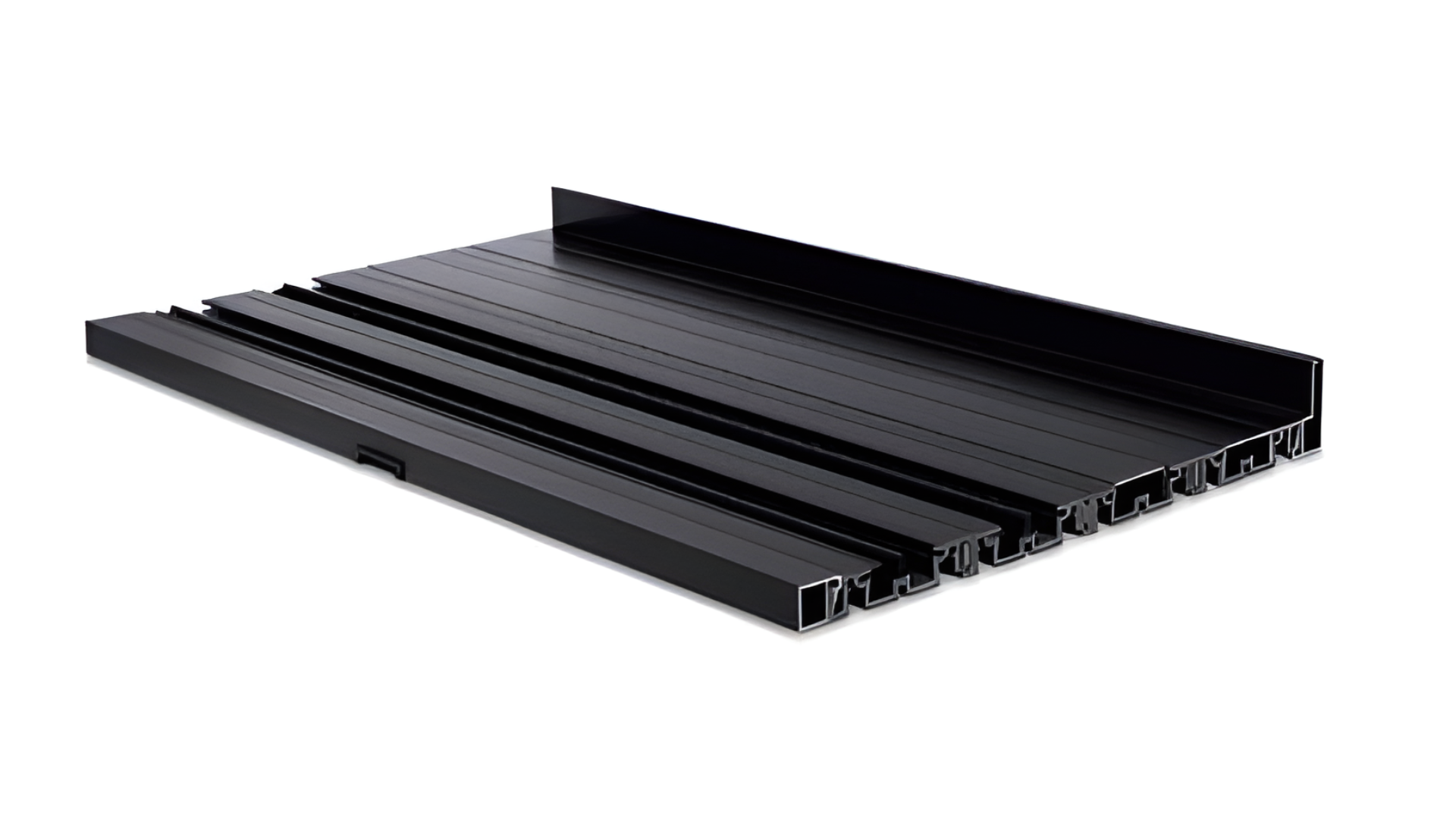

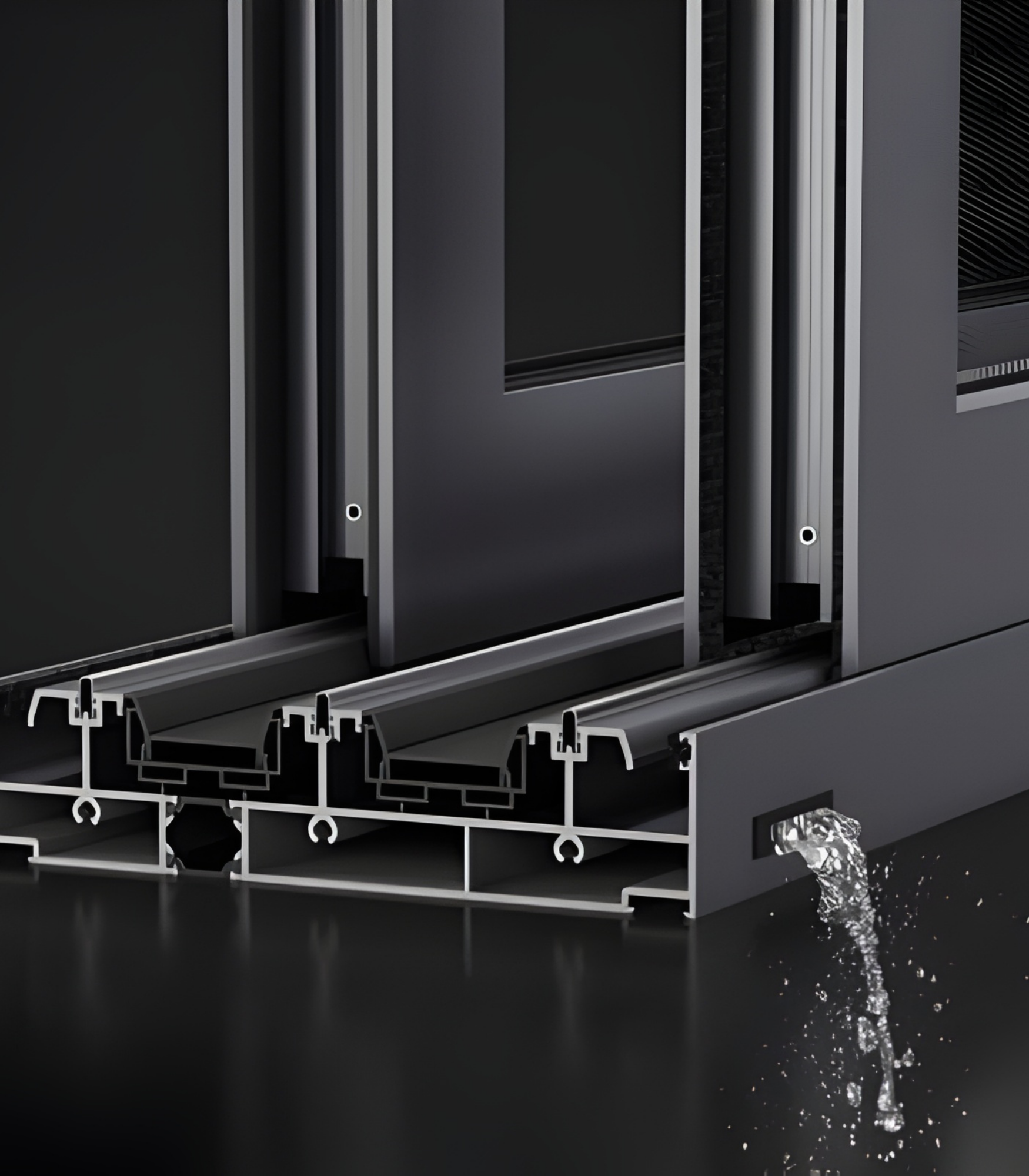

Waterproofing – The sill on the VLX 150 is engineered as a two-stage drainage system. Water that gets past the exterior gasket falls into a weep chamber and drains back outside before it reaches the interior floor. When Hale Windows Woodland Hills installs this product, we also apply AAMA 812 low-expansion foam sealant to every perimeter joint, which prevents the hidden water paths that cause long-term rot and mold behind trim.

Wind Resistance – Wind-load ratings are calculated per project, but the VLX 150 is designed for the kind of exposure common in Woodland Hills hillside and canyon locations. The 0.118-inch wall thickness and reinforced multi-point locking hardware keep panels stable under positive and negative wind pressure. We verify required structural ratings against the local building code before ordering.

Security & Hardware – The rollers, strikes, and locking mechanisms are stainless steel. This is not the chrome-plated hardware found on box-store sliders that corrodes within a few seasons. Multi-point locking is available, and laminated glass upgrades double as a security feature by holding the pane together if struck. For ground-floor installations in Woodland Hills, we recommend at minimum a laminated panel on the operable leaf.

Color & Glass Options

Six finish options cover most architectural directions in Woodland Hills. Premium Black and Anodized Silver are the two most requested finishes for modern and mid-century remodels, especially on homes with steel-frame windows or black fascia trim. Pure White fits traditional and coastal-inspired homes in the southern end of the Valley. Bronze and Champagne read warmer and pair well with stucco and terra cotta accents. Teak Wood is a wood-look finish that gives the strength of aluminum with the visual warmth of a wood frame, useful when matching existing wood windows.

Glass selection depends on what the door faces. Low-E should be the baseline on any sun-exposed elevation. Tempered is required on all operable panels by code. Laminated adds sound control and impact resistance, and is worth the cost on street-facing or noise-exposed walls. Gray Tint and Black Tint reduce glare and solar gain on west-facing openings; we see Black Tint specified most often on modern homes with dark exterior palettes.

Installation by Hale Windows Woodland Hills in Woodland Hills

How a sliding door is installed matters more than what is stamped on the frame. A $12,000 door installed out of level will bind, leak, and void the manufacturer warranty. We see this all the time in Woodland Hills: homeowners who bought a premium product from a broker, got a subcontracted crew, and ended up with a door that does not operate correctly six months later.

Our installation process starts with a pre-install inspection of the rough opening. We check framing condition, header sizing, and floor flatness before we ever place the order. If the opening is out of square more than the manufacturer tolerance, we correct the framing first. On install day, the door is set level, plumb, and square in both planes. We shim and fasten per the ViewLux installation manual, not shortcut convention. Then we insulate the perimeter with AAMA 812 low-expansion foam sealant, which stops air and water movement through the gap that most installers leave empty. Exterior flashing, sill pan integration, and final water testing are included. We clean up after ourselves.

Our work is performed to AAMA 2400/2410 installation standards, which govern proper anchoring, sealing, and field testing for fenestration products. Woodland Hills sees extreme heat, occasional heavy rain, and seasonal wind events; a door that passes a water test in dry weather can still fail in January. We install for the worst case, not the easiest case.

Warranty coverage is another reason to use a factory-authorized partner. ViewLux provides a product warranty, but the warranty is conditional on installation being performed to spec by an authorized installer. Hale Windows Woodland Hills is that authorized partner for the VLX 150 in Woodland Hills, CA.

Frequently Asked Questions – VLX 150 Heavy-Duty Sliding Door

What is the lead time for the VLX 150 Heavy-Duty Sliding Door?
Lead time for the VLX 150 typically runs 8 to 12 weeks from final measurement approval, depending on the glass package and finish selected. Custom finishes and laminated glass add time. We recommend scheduling your site measurement early in the process so the order is in the queue before you finalize interior finishes. Call (831) 618-2053 to confirm current lead times for Woodland Hills projects.

Does the VLX 150 qualify for energy tax credits?
Whether the VLX 150 qualifies for a federal or California energy tax credit depends on the specific glass package, orientation, and the NFRC-rated U-factor and SHGC values for your configuration. Low-E glass options are generally required. We can provide the NFRC label data for your build so your tax professional can confirm eligibility. Call (831) 618-2053 for the spec sheet.

What warranty comes with the VLX 150 Heavy-Duty Sliding Door?
The VLX 150 carries a manufacturer warranty from ViewLux covering the frame and hardware, with the length and terms dependent on the configuration. Installation by Hale Windows Woodland Hills as an authorized partner keeps that warranty intact. Ask for the written warranty document at your estimate, and we will include it with your quote. Call (831) 618-2053 for details.

Can I customize the size of the VLX 150?
Yes. The VLX 150 is a fabricated-to-order product, not a stock-size door. Panel widths, heights, and track counts are built to your rough opening. Maximum span is 24 feet, but any size under that can be configured. We measure every opening ourselves in Woodland Hills to confirm the exact fabricated dimensions before ordering. Call (831) 618-2053 to schedule measurement.

How do I maintain aluminum frames on the VLX 150?
Aluminum frames need little beyond regular cleaning with a mild soap and water, plus annual inspection of the track, weep holes, and weather stripping. Keep the track clear of debris so drainage stays open. Avoid abrasive cleaners on powder-coated finishes. If a roller ever feels rough, call us before forcing the panel; a minor roller replacement is cheaper than a bent track. Reach us at (831) 618-2053 for any service questions.

Get a Quote – VLX 150 Heavy-Duty Sliding Door in Woodland Hills

The VLX 150 is a serious piece of engineering, and it deserves a serious install. If you are planning a large opening in Woodland Hills, the next step is a free on-site measurement. We will review the opening, discuss track configuration and glass packages, and give you a written line-item quote with no pressure. Call (831) 618-2053 today to start your project.
